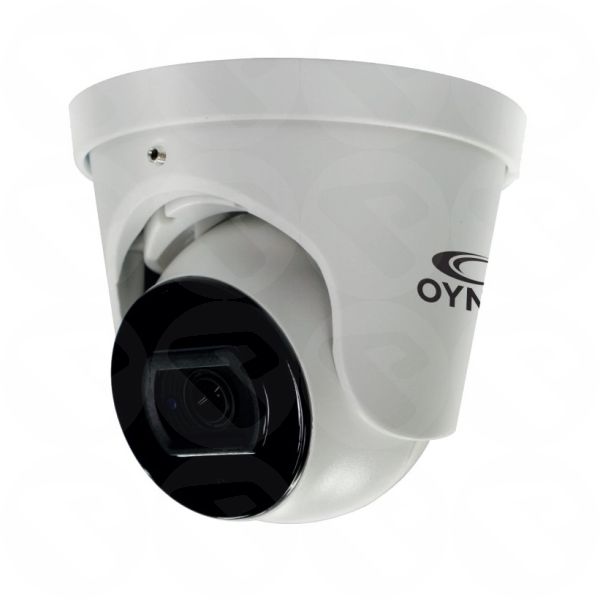

Turret 5mp 3.6mm Lens Infra-Red 25m IP66 Camera KESTREL-5-TUR-FW

Specification KESTREL-5-TUR-FW
Camera
Sensor + DSP SC5332 + SSC327DE
Sensor 1/2.7” Progressive scan CMOS Sensor
Min. Illumination 0.01lux(Color), 0lux(IR on)
Lens 3.6mm@ horizontal FOV:77° , vertical FOV:56°diagonal
FOV: 103°
Lens Mount M12
IR 14milX18pcs SMD LED
IR Range 30m
Smart IR Support
Shutter Time Auto/Manual, 1/3~1/10000s
Day/Night IR cut filter with auto switch
Wide Dynamic Range DWDR
Digital noise reduction 2D/3D DNR
Compression Standard
Video Compression H.264/H.264+/H.265/H.265+
H.264 Codec profile Base/Main/High profile
H.265 Codec profile Main profile
Video Bit Rate 11 Kbps~10 Mbps
Triple Streams Support
Audio Compression G.711A, G.711U
Audio Bit Rate 64 Kbps(-A Model)
Max. Image Resolution 5MP(2592 × 1944)
Frame Rate
50Hz:15fps 5MP(2592 × 1944)
25fps 4MP(2560 × 1440),25fps 4MP(2304 × 1728)
25fps 3MP(2048 × 1536),25fps 1080P(1920 × 1080)
25fps 960P(1280 × 960),
60Hz:15fps 5MP(2592 × 1944)
25fps 4MP(2560 × 1440),25fps 4MP(2304 × 1728)
30fps 3MP(2048 × 1536),30fps 1080P(1920 × 1080)
30fps 960P(1280 × 960),30fps 720P(1280 × 720)
Sub Stream 50Hz:25fps D1(704 × 576),25fps CIF(352 × 288)
60Hz:30fps D1(704 × 480),30fps CIF(352 × 240)
Third Stream N/A
Image Setting Brightness/Contrast/Saturation/Hue/Sharpness
BLC Support
HLC Support
ROI Support
Defog Support
Network
Network Storage N/A
Protocols
TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP,RTSP,
RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P,Bonjour,IPV6
(NO FTP)
Event Motion Detections, Video Shelter
Smart Functions N/A
System Compatibility Onvif (Profile S), CGI
Security User authentication,IP address filtering,Video mask
Mobile Surveillance iPhone, iPad, Android, CMS, WEB
