TP-LINK (MC220L) Gigabit SFP Media Converter, 1000M RJ45 to 1000M SFP, 0.55km/10km

Pcode
21656

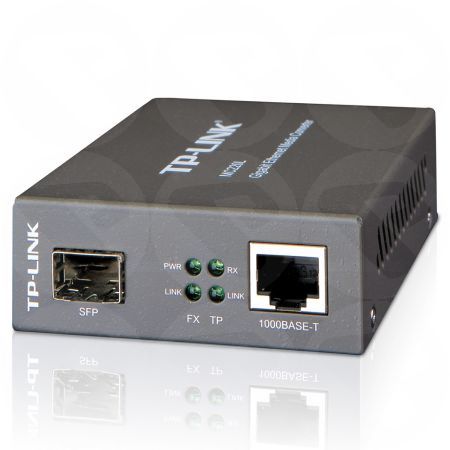

main product photo
£19.06
In stock

Description

Specification

  • Type: SFP Media Converter
  • Enclosure Type: External
  • Basic Functions: Full Duplex Flow Control (IEEE 802.3x)
    Extends fiber distance up to 0.5km using 50/125um fiber
  • Ports: 1 Gigabit SFP port
    1 1000M RJ45 port (Auto MDI/MDIX)
  • Standards and Protocols: "IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x"
  • Wave Length: SFP module dependant
  • Network Media 1000BASE-T: "UTP category 5, 5e, 6 cable (maxium 100m)
    EIA/TIA-568 100 Ohms STP (maximum 100m)"
  • Network Media 1000BASE-FX: Multi-mode/Single-mode SFP module
  • Transmission Distance: 0.55/10km
  • LED Indicators: "PWR, LINK, RX"
  • Dimensions (WxDxH): 3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
  • Power Supply: External Power Adapter
  • Environment (℃): Operating Temperature: 0~40 (32~104)
    Storage Temperature: -40~70 (-40~158)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
  • Package Type: Retail
  • Package Weight: 0.4800 kg
  • Warranty: 5 Years

Highlights:

• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber


What This Product Does
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Part Number MC220L
EAN / UPC 6935364030476
