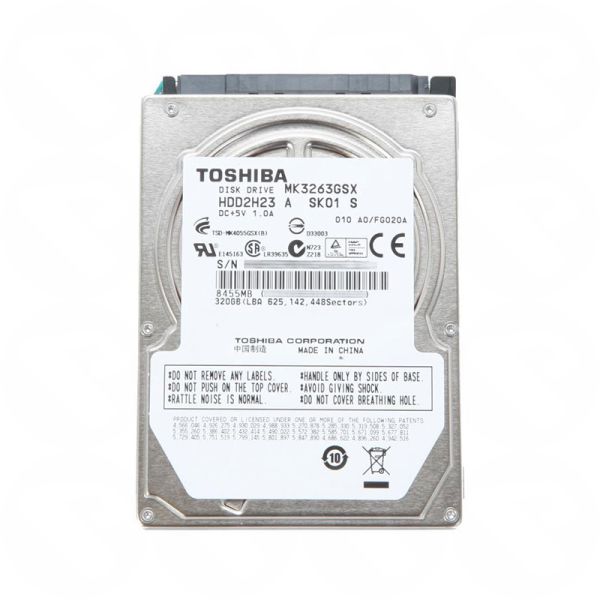

Toshiba 2.5" 320GB SATA 5400RPM Hard Drive MK3276GSX
Based on the popular MK3255GSX drive, the MK3263GSX is the next generation offering all the invaluable specifications appreciated by Toshiba OEMs and system integrators.
The MK3263GSX is a 320GB, 5400 rpm, 2.5-inch hard disk drive featuring "Silent-Seek Technology" which has made it a favourite storage device for consumer electronic manufacturers of audio visual devices. Production of embedded hard disk drives appearing in televisions sets and DVD HDD recorders is increasing in Europe due to the growing availability of instant audio and visual content: Therefore, manufacturers and consumers are demanding rugged drives with low operational acoustics in order to enjoy uncompromised recorded content. In addition, this latest model is extremely environmentally friendly, boasting 20% improvement in increased energy consumption efficiency, lower CO2 emission of 95g a year, halogen-free , RoHS compatible and is a certified Toshiba ECP Product.
Specifications
| Disk drive | |
| Hard disk drive capacity | 320 GB |
| Internal | Y |
| Hard disk rotational speed | 5400 RPM |
| Hard disk interface | Serial ATA II |
| Average latency | 12 ms |
| Track to track seek time (read/write) | 2 ms |
| Hard disk number of heads | 3 |
| Drive device, buffer size | 8 MB |
| Bytes per sector | 512 |
| Hard disk number of plates | 2 |
| Weight & dimensions | |
| Dimensions W x D x H | 69.85 x 100 x 9.5 mm |
| Weight | 101 g |
| Depth | 100 mm |
| Height | 9.5 mm |
| Width | 69.85 mm |
| Energy management | |
| Power consumption | 4.5 W |
| Power consumption (standby) | 0.18 W |
| Power consumption (active) | 1.9 W |
| Power consumption (off) | 0.13 W |
| Environmental conditions | |
| Operating shock | 400 G |
| Operating temperature range (T-T) | 5 - 55 |
| Part Number | MK3276GSX |
|---|
