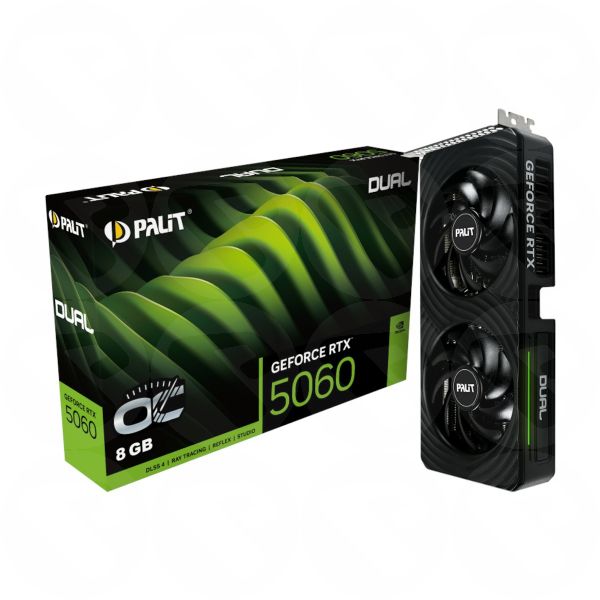

Palit RTX5060 DUAL OC, PCIe5, 8GB DDR7, HDMI, 3 DP, 2535MHz Clock, RGB Lighting, Overclocked

Step into next-generation performance with this 8 GB graphics card built for gamers and creators alike. Powered by NVIDIA’s Blackwell architecture and featuring GDDR7 memory, it delivers smooth frame rates, realistic ray tracing, and AI-driven enhancements like DLSS 4. With a compact dual-fan, 2-slot form factor, it fits in many modern builds without compromising power. Whether you’re targeting 1080p ultra, pushing 1440p, or working with creative workloads, this card is engineered to keep pace with today’s visual demands.

Key Features

• 8 GB GDDR7 memory running at 28 Gb/s (memory clock 1.750 GHz)
• Boost clock up to 2.535 GHz, base clock 2.280 GHz
• NVIDIA Blackwell architecture with 3,840 CUDA cores
• Supports full ray tracing, DLSS 4, and AI-powered features
• Dual 95 mm fans and composite heat pipe cooling
• Compact 2-slot design for broad compatibility
• One 8-pin PCIe power connector
• Multi-display support with 1× HDMI and 3× DisplayPort
• RGB lighting and software control via Palit ThunderMaster

Specifications

• Memory capacity: 8 GB
• Memory type: GDDR7
• Memory interface: 128-bit
• Memory bandwidth: 448 GB/s
• Base clock: 2,280 MHz
• Boost clock: 2,535 MHz
• TDP (board power): 145 W
• Power connector: 1 × 8-pin PCIe
• Interface: PCI Express x16 (PCIe 5.0 compatible)
• CUDA cores / shader units: 3,840
• RT cores: 30
• Tensor cores: 120
• Display outputs: 1 × HDMI v2.1b, 3 × DisplayPort v2.1b
• Max resolution: 7,680 × 4,320
• Dimensions: 26.2 × 12.6 × 4.0 cm
• Expansion slot width: 2 slots
