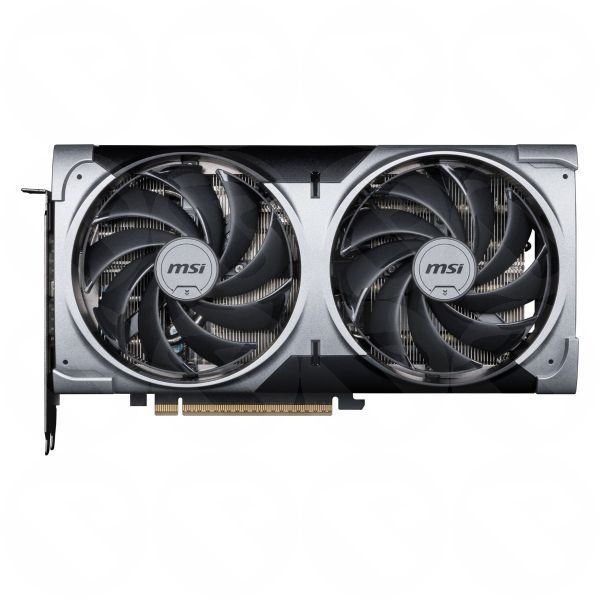

MSI RTX5070 12G VENTUS 2X OC, PCIe5, 12GB DDR7, HDMI, 3 DP, 2557MHz Clock, Overclocked, SFF-Ready

The MSI GeForce RTX™ 5070 12G VENTUS 2X OC is a powerful, compact graphics card designed for high-performance gaming, content creation, and next-generation workloads. Powered by the NVIDIA Blackwell architecture and enhanced with DLSS 4, this GPU delivers exceptional frame rates, stunning visuals, and advanced AI-driven performance.
Equipped with 12GB of ultra-fast GDDR7 memory, a PCIe Gen 5 interface, and factory overclocked core speeds up to 2557 MHz, the RTX 5070 VENTUS 2X OC is built to handle modern AAA titles, high-refresh-rate gaming, and demanding creative applications. Its SFF-ready dual-fan design ensures excellent thermal efficiency in compact builds, while MSI’s premium cooling technologies keep performance stable and quiet under load.

Key Features

• Powered by NVIDIA Blackwell architecture with DLSS 4
• Factory overclocked for enhanced performance
• 12GB GDDR7 memory with 192-bit interface
• Ultra-fast PCI Express Gen 5 connectivity
• SFF-ready compact design ideal for small form factor PCs
• TORX Fan 5.0 for high-pressure, efficient airflow
• Nickel-plated copper baseplate for rapid heat transfer
• Core Pipe design maximizes contact with GPU for optimal cooling
• Reinforced metal backplate with airflow venting
• Full control via MSI Center and MSI Afterburner software

Specifications

General

• Brand: MSI
• Marketing Name: GeForce RTX™ 5070 12G VENTUS 2X OC
• Model Name: G5070-12V2C
• GPU: NVIDIA® GeForce RTX™ 5070
• Architecture: NVIDIA Blackwell

Performance

• Core Clock (Extreme Performance): 2557 MHz (MSI Center)
• Boost Clock: 2542 MHz
• CUDA® Cores: 6144
• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6
• G-SYNC® Technology: Yes

Memory

• Memory Size: 12GB
• Memory Type: GDDR7
• Memory Speed: 28 Gbps
• Memory Bus: 192-bit
• Interface & Connectivity
• Interface: PCI Express® Gen 5

Display Outputs:

• 3 × DisplayPort 2.1b
• 1 × HDMI™ 2.1b (up to 4K 480Hz or 8K 120Hz with DSC, VRR, HDR)
• Maximum Displays Supported: 4
• Digital Max Resolution: 7680 × 4320
• HDCP Support: Yes
• Power & Requirements
• Power Consumption: 250 W
• Power Connector: 1 × 16-pin
• Recommended PSU: 650 W

Cooling & Design

• Cooling Solution: Dual-fan (VENTUS 2X)
• Fan Technology: TORX Fan 5.0
• Baseplate: Nickel-plated copper
• Backplate: Metal backplate with airflow vent
• Product Color: Black
• Dimensions & Weight
• Card Dimensions: 236 × 126 × 50 mm
• Card Weight: 774 g
• Package Weight: 1149 g

Package Including

• 1 × MSI GeForce RTX™ 5070 12G VENTUS 2X OC Graphics Card
• 1 × Quick Installation Guide
• 1 × Support & Warranty Documentation
