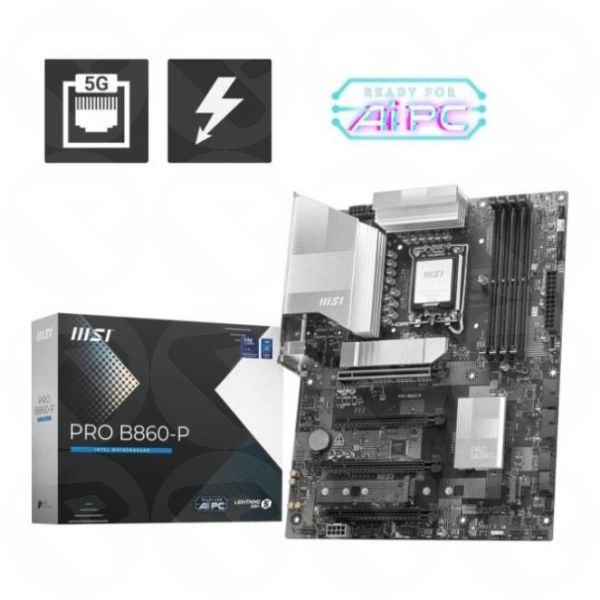

MSI PRO B860-P WIFI Motherboard, ATX - Supports Intel Core Ultra Processors (Series 2), LGA 1851-12 DRPS, DDR5 Memory Boost (8600+ MT/s OC), PCIe 5.0 x16 & 4.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

The MSI PRO B860-P WIFI is an ATX motherboard designed for Intel Core Ultra Series 2 desktop processors using the LGA 1851 socket. Powered by the Intel B860 chipset, it combines high-speed DDR5 memory support, PCIe 5.0 connectivity, advanced storage options, and modern wired and wireless networking. With support for up to 256GB of DDR5 memory, Wi-Fi 7, Bluetooth 5.4, and 5Gbps Ethernet, it provides a versatile foundation for high-performance gaming, productivity, and professional desktop systems.

Key Features

• Intel LGA 1851 Socket: Designed for compatible Intel Core Ultra Series 2 processors.
• Intel B860 Chipset: Provides a modern platform for high-performance desktop systems.
• DDR5 Memory Support: Four DIMM slots support up to 256GB of dual-channel DDR5 memory.
• High-Speed Memory: Supports memory overclocking speeds of up to 8800 MT/s depending on configuration.
• PCIe 5.0 x16: High-bandwidth interface for modern graphics cards and expansion hardware.
• PCIe 5.0 M.2: Provides next-generation bandwidth for compatible NVMe SSDs.
• Wi-Fi 7: High-speed wireless networking for compatible networks.
• 5Gbps LAN: Fast wired networking for demanding data transfers and online applications.
• Bluetooth 5.4: Convenient wireless connectivity for compatible peripherals.
• ATX Form Factor: Standard layout suitable for a wide range of desktop PC cases.

What's Included

• 1 × MSI PRO B860-P WIFI Motherboard
• Wi-Fi Antenna
• SATA Cable
• User Documentation

Specifications

• Brand: MSI
• Model: PRO B860-P WIFI
• Manufacturer SKU: PRO B860-P WIFI
• Chipset: Intel B860
• CPU Socket: LGA 1851
• Form Factor: ATX
• Dimensions: 304.8 × 243.8mm
• Memory Type: DDR5
• Memory Slots: 4
• Maximum Memory: 256GB
• Memory Architecture: Dual Channel

Processor Support

• Intel Core Ultra Series 2 Desktop Processors
• LGA 1851 Socket

Memory Support

• 4 × DDR5 DIMM Slots
• Maximum Capacity: 256GB
• Dual-Channel Memory Architecture
• Memory Overclocking Support
• Up to 8800 MT/s OC depending on memory configuration

Storage

• 3 × M.2 Slots
• PCIe 5.0 M.2 Support
• PCIe 4.0 M.2 Support
• 4 × SATA III 6Gb/s Ports

Expansion Slots

• 1 × PCIe 5.0 x16 Primary Slot
• Additional PCIe Expansion Slots

Networking & Wireless

• 5Gbps Ethernet LAN
• Wi-Fi 7 (802.11be)
• Bluetooth 5.4

Display Connectivity

• DisplayPort 1.4
• HDMI 2.1

Audio

• Realtek ALC897 Audio Codec
• High-Definition Multi-Channel Audio

Applications

• High-performance gaming PCs
• Content creation workstations
• Professional desktop systems
• High-speed storage builds
• Home and office PCs
• Modern Intel Core Ultra systems

Benefits

• Supports the latest compatible Intel Core Ultra processors
• Large 256GB DDR5 memory capacity
• High-speed PCIe 5.0 connectivity
• Next-generation Wi-Fi 7 networking
• Fast 5Gbps wired Ethernet
• Bluetooth 5.4 connectivity
• Multiple M.2 storage options
• Standard ATX design for flexible system building

Why Choose the MSI PRO B860-P WIFI?

The MSI PRO B860-P WIFI combines modern Intel platform support with fast DDR5 memory, PCIe 5.0 expansion, high-speed M.2 storage, Wi-Fi 7, Bluetooth 5.4, and 5Gbps Ethernet. Its ATX form factor and extensive connectivity make it a strong choice for users building a powerful and upgrade-ready Intel desktop PC.
