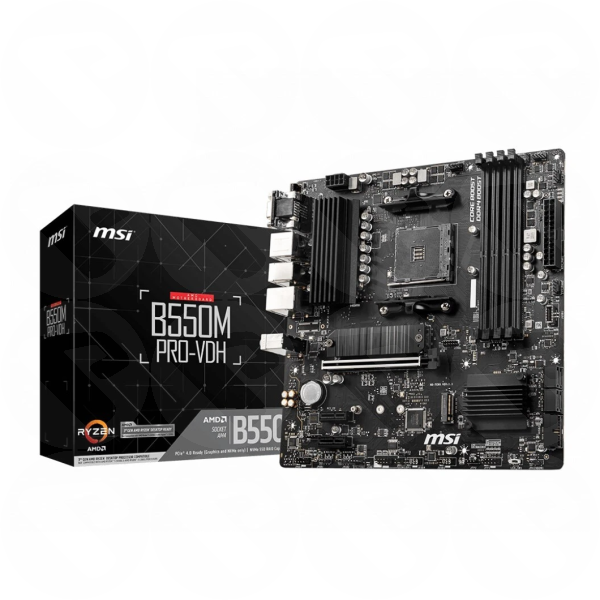

MSI AM4 B550M PRO-VDH M-ATX

The MSI B550M PRO-VDH is a versatile Micro ATX motherboard designed for AMD Ryzen processors using the AM4 socket. Powered by the AMD B550 chipset, it supports DDR4 memory up to 128GB and offers dual-channel memory architecture, PCIe 4.0 graphics connectivity, dual M.2 slots, and multiple storage options. With Gigabit Ethernet, HDMI and DisplayPort outputs, and a compact Micro ATX design, it is a practical foundation for gaming, productivity, and everyday desktop systems.

Key Features

• AMD AM4 Socket: Compatible with selected AMD Ryzen 3rd Generation Ryzen 9, Ryzen 7, and Ryzen 5 processors.
• AMD B550 Chipset: Provides a modern and flexible AM4 platform.
• 128GB DDR4 Support: Four DIMM slots support up to 128GB of dual-channel memory.
• PCIe 4.0 x16: High-speed expansion for compatible graphics cards.
• Dual M.2 Slots: Provides flexible high-speed storage options.
• Gigabit Ethernet: Realtek LAN controller provides reliable wired networking.
• Multiple Display Outputs: HDMI, DisplayPort and VGA outputs provide flexible display connectivity.
• Micro ATX Form Factor: Compact design suitable for a wide range of PC cases.

What's Included

• 1 × MSI B550M PRO-VDH Motherboard
• SATA Cable
• Drivers
• Motherboard Documentation

Specifications

• Brand: MSI
• Model: B550M PRO-VDH
• Chipset: AMD B550
• CPU Socket: AM4
• Form Factor: Micro ATX
• Dimensions: 244 × 244mm
• Processor Manufacturer: AMD
• Maximum SMP Processors: 1
• Audio: 7.1 Channel

Processor Compatibility

• AMD Ryzen 3rd Generation Ryzen 9
• AMD Ryzen 7
• AMD Ryzen 5
• AM4 Socket Processors

Memory Support

• 4 × DDR4 DIMM Slots
• Maximum Memory: 128GB
• Dual-Channel Memory Architecture
• Unbuffered Memory Support
• Supported Speeds: 1866MHz to 4400MHz depending on configuration

Storage

• 2 × M.2 Slots
• 4 × SATA III 6Gb/s Connectors
• Supports HDD and SSD Storage
• RAID 0, RAID 1 and RAID 10 Support

Expansion Slots

• 1 × PCI Express 4.0 x16
• 2 × PCI Express 3.0 x1

Networking

• Realtek 8111HN LAN Controller
• Gigabit Ethernet
• 1 × RJ-45 LAN Port
• Wi-Fi: Not Included

Rear I/O Ports

• 1 × VGA (D-Sub)
• 1 × HDMI 2.1
• 1 × DisplayPort
• 4 × USB 3.2 Gen 1 Type-A
• 2 × USB 2.0
• 1 × RJ-45 Gigabit Ethernet
• Audio Connectors

Internal Connectivity

• 1 × 24-Pin ATX Power Connector
• 1 × 12V CPU Power Connector
• 2 × USB 2.0 Headers
• 1 × USB 3.2 Gen 1 Header
• 3 × Chassis Fan Connectors
• 1 × CPU Fan Connector
• Front Panel Audio Connector
• Front Panel Connector
• TPM Connector
• RGB LED Header
• Chassis Intrusion Connector
• Clear CMOS Jumper

Applications

• Gaming PCs
• Home desktop systems
• Office workstations
• Multimedia PCs
• Compact Micro ATX builds
• PC upgrades and system replacements

Benefits

• Supports AMD AM4 Ryzen processors
• Four DDR4 memory slots
• Up to 128GB system memory
• Dual M.2 storage connectivity
• PCIe 4.0 graphics support
• Gigabit wired networking
• Multiple monitor connectivity options
• Compact Micro ATX design

Why Choose the MSI B550M PRO-VDH?

The MSI B550M PRO-VDH provides a balanced combination of performance, connectivity, and expandability for AMD AM4 systems. With DDR4 support, dual M.2 slots, PCIe 4.0 graphics connectivity, Gigabit Ethernet, and multiple display outputs, it is a dependable choice for building or upgrading a compact desktop PC.
