Low Profile Intel CPU Cooler TDP 110W PWM Fan

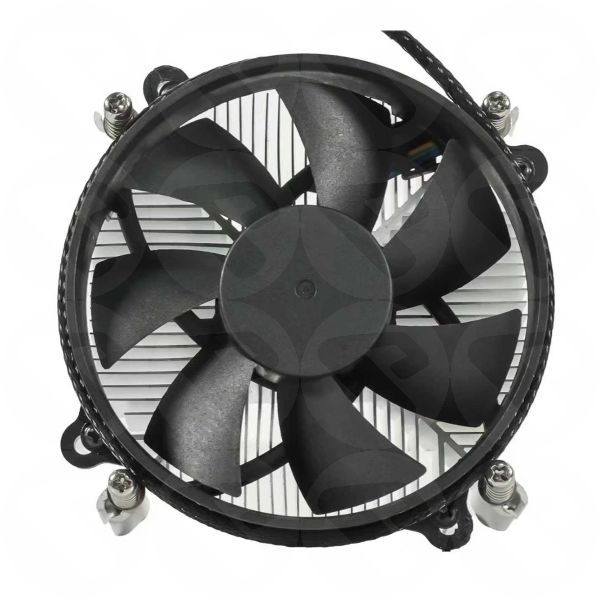

The CiT Low Profile Intel CPU Cooler is engineered for compact systems that demand efficient cooling in tight spaces. With a slim 60mm height and a 95 x 95mm footprint, it is ideal for HTPCs and small form factor builds. Featuring aluminium fins and a high-performance 90mm PWM fan, this cooler delivers reliable heat dissipation while maintaining quiet operation.

Key Features

• Ultra Low Profile Design: Only 60mm height, perfect for compact PC cases with limited clearance.
• Efficient Cooling Performance: Supports up to 110W TDP, ensuring effective heat dissipation for Intel CPUs.
• 90mm PWM Silent Fan: Adjustable speeds from 800 to 2500 RPM for optimal balance between cooling and noise.
• Optimised Airflow: Staggered fan positioning improves airflow focus across aluminium fins.
• Durable Hydraulic Bearing: Provides quiet performance with extended lifespan up to 30,000 hours.
• Wide Intel Compatibility: Supports Intel 1851, 1700, 1200, and 115X sockets.

Dimensions

• Overall Size: 95mm x 60mm x 95mm (W x H x D)
• CPU Block Size: 90mm x 90mm x 35mm
• Fan Size: 90mm x 25mm x 90mm
• Weight: Approx. 0.31 kg

What’s Included

• 1 x CiT Low Profile CPU Cooler
• Thermal paste
• Mounting bracket kit

Material and Finish

• Heatsink Material: Aluminium fins for effective heat conduction
• Fan Bearing: Hydraulic bearing for durability and quiet operation
• Finish: Black and silver compact design

How to Use

• Apply thermal paste evenly on the CPU surface.
• Position the cooler over the CPU and secure it using the included bracket.
• Connect the 4-pin PWM fan connector to the motherboard.
• Power on the system and allow automatic fan speed adjustment.
• Monitor temperatures and adjust fan curves if needed via BIOS.

Specifications

• Product Type: Low Profile CPU Cooler
• TDP Support: Up to 110W
• Fan Speed: 800–2500 RPM (PWM)
• Airflow: 45.0 CFM
• Noise Level: 22.5 dBA
• Connector: 4-pin PWM
• Voltage: 12V (Operating 6–13.8V)
• Power Consumption: 1.7W
• Bearing Type: Hydraulic
• MTBF: 30,000 hours
• Compatibility: Intel 1851 / 1700 / 1200 / 115X
• Model: CIT-CPU-Z03
• EAN: 5055492416537

Why Choose the CiT Low Profile CPU Cooler?

This compact yet powerful CPU cooler is perfect for space-constrained systems that still require reliable thermal performance. Its efficient aluminium design, quiet PWM fan, and broad Intel compatibility make it an excellent choice for HTPC builds, office PCs, and small form factor systems where performance and space-saving design are equally important.
