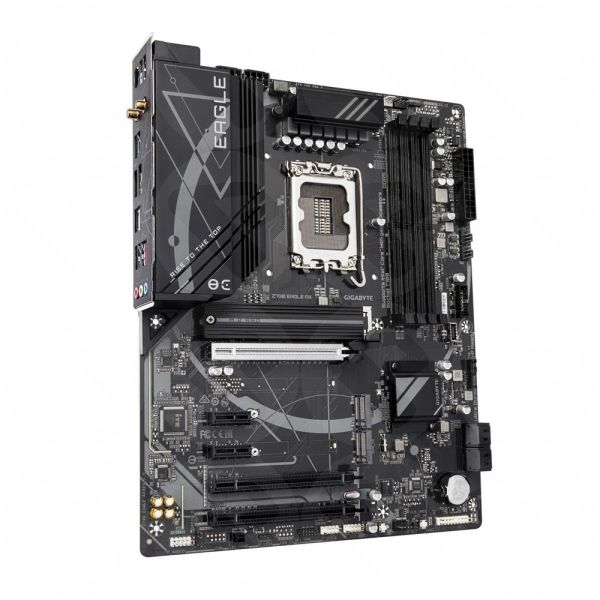

Gigabyte Z790 EAGLE AX (Socket 1700/Z790 Express/DDR5/S-ATA 6Gb/s/ATX

The GIGABYTE Z790 EAGLE AX is a high-performance ATX motherboard designed for Intel 14th, 13th, and 12th Generation processors using the LGA1700 socket. Built on the Intel Z790 Express chipset, it delivers exceptional power efficiency and stability through its advanced 12+1+1 phases digital VRM design, making it ideal for gaming, content creation, and enthusiast PC builds.

Supporting next-generation DDR5 memory with XMP 3.0 and speeds up to 7000 MHz, this motherboard ensures ultra-fast responsiveness and smooth multitasking. With PCIe 5.0 graphics support, triple PCIe 4.0 M.2 slots, advanced thermal solutions, and integrated Wi-Fi 6E and 2.5GbE LAN, the Z790 EAGLE AX offers cutting-edge connectivity, storage flexibility, and long-term reliability.

Key Features

• Supports Intel Core 14th, 13th, and 12th Generation processors
• Intel Z790 Express chipset with LGA1700 socket
• 12+1+1 phases digital VRM for stable power delivery
• Dual-channel DDR5 memory with XMP 3.0 support
• Four DDR5 DIMM slots supporting up to 7000 MHz
• Three PCIe 4.0 x4 M.2 connectors for high-speed storage
• PCIe 5.0 x16 slot with EZ-Latch quick-release design
• Advanced thermal design with M.2 Thermal Guard
• 2.5GbE LAN and integrated Wi-Fi 6E with Bluetooth 5.3
• HDMI 2.1 and DisplayPort support for integrated graphics

Specifications

• Model: Z790 EAGLE AX
• Form Factor: ATX
• Dimensions: 30.5 x 24.4 cm
• CPU Socket: LGA1700
• Chipset: Intel Z790 Express
• Processor Support: Intel Core 14th / 13th / 12th Gen
• Memory Type: DDR5
• Memory Slots: 4 x DIMM
• Maximum Memory Speed: Up to 7000 MHz
• Expansion Slots: 1 x PCIe 5.0 x16
• Storage: 3 x M.2 PCIe 4.0, 4 x SATA 6Gb/s
• RAID Support: Yes
• Graphics Output: HDMI 2.1, DisplayPort 1.2
• Audio: Realtek HD Audio, 2/4/5.1/7.1 channels, S/PDIF Out
• LAN: Realtek 2.5GbE
• Wireless: Wi-Fi 6E, Bluetooth 5.3
• BIOS: AMI UEFI BIOS, 256 Mbit Flash
• Operating System Support: Windows 10

Package Including

• 1 x GIGABYTE Z790 EAGLE AX Motherboard
• 1 x User Manual
• 1 x Driver and Utility Software
• 2 x SATA Cables
• 2 x Wi-Fi Antennas
• 1 x I/O Shield
