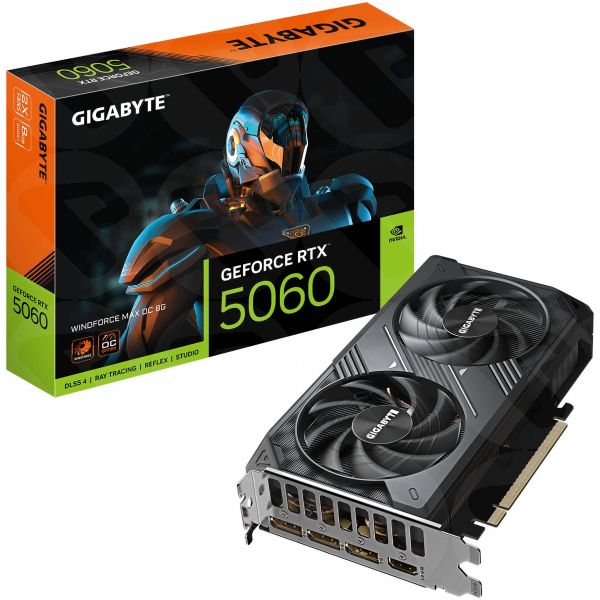

GIGABYTE RTX 5060 8GB WINDFORCE MAX OC

The GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8G is a high-performance graphics card built on NVIDIA's Blackwell architecture. With 3840 CUDA cores, 8GB of high-speed GDDR7 memory and a 2512MHz boost clock, it is designed to deliver smooth gaming performance and responsive graphics for modern applications.

The card combines NVIDIA DLSS 4, fourth-generation ray tracing and fifth-generation Tensor cores to provide advanced AI-powered graphics features, realistic lighting and improved gaming performance. Its dual-fan WINDFORCE cooling system helps dissipate heat during demanding gaming and creative workloads.

Key Features

• NVIDIA GeForce RTX 5060 GPU with Blackwell architecture
• 3840 CUDA cores
• 8GB GDDR7 high-speed graphics memory
• 128-bit memory interface
• 448GB/s memory bandwidth
• 2512MHz boost clock
• NVIDIA DLSS 4 support
• Fourth-generation ray tracing cores
• Fifth-generation Tensor cores
• Dual-fan WINDFORCE cooling system
• PCIe 5.0 x16 interface
• 3 × DisplayPort 2.1b and 1 × HDMI 2.1b
• Supports up to four displays
• Up to 8K digital resolution
• Compact dual-slot design

Specifications

• GPU: NVIDIA GeForce RTX 5060
• Edition: WINDFORCE MAX OC 8G
• Architecture: NVIDIA Blackwell
• Manufacturing Process: 4nm
• CUDA Cores: 3840
• AI TOPS: 614
• Boost Clock: 2512MHz
• Memory: 8GB GDDR7
• Memory Bus: 128-bit
• Memory Bandwidth: 448GB/s
• Interface: PCIe 5.0 x16
• Cooling: Dual Fan
• RT Cores: 30, 4th Generation
• Tensor Cores: 120, 5th Generation
• Video Outputs: 3 × DisplayPort 2.1b, 1 × HDMI 2.1b
• Maximum Resolution: 7680 × 4320
• Maximum Displays: 4
• Power Connector: 1 × 8-pin PCIe
• Recommended PSU: 550W
• Dimensions: 199 × 116 × 40mm
• Model Number: GV-N5060WF2MAX OC-8GD

Gaming and Graphics Performance

The RTX 5060 WINDFORCE MAX OC combines Blackwell architecture, GDDR7 memory, DLSS 4 and dedicated ray tracing and Tensor cores to provide a modern graphics platform for gaming, content creation and AI-enhanced applications.

Cooling and Connectivity

The dual-fan cooling solution is designed to help manage GPU temperatures during demanding workloads. With three DisplayPort 2.1b outputs and one HDMI 2.1b port, the graphics card can support up to four displays and resolutions of up to 8K.

The GIGABYTE GeForce RTX 5060 WINDFORCE MAX OC 8G is a compact, factory-overclocked graphics card designed for users looking for modern Blackwell performance, fast GDDR7 memory and advanced NVIDIA gaming technologies.
