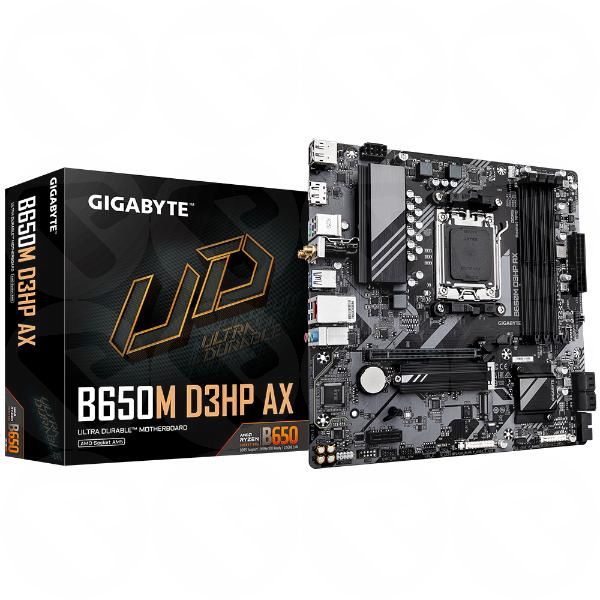

Gigabyte AMD Ryzen B650M D3HP AX AM5 DDR5 microATX Motherboard
Pcode
31451
£125.00
In stock
Experience next-generation performance and connectivity with the Gigabyte B650M D3HP AX Micro ATX Motherboard, engineered for AMD Ryzen™ 7000, 8000, and 9000 Series processors. Featuring a 5+2+2 phase digital VRM solution, DDR5 support up to 7600MHz (OC), and cutting-edge connectivity, this board ensures seamless multitasking, gaming, and content creation.
Categories: Components, Mainboards, AMD Mainboards
Experience next-gen performance and connectivity with the Gigabyte B650M D3HP AX Micro ATX motherboard, supporting AMD Ryzen 7000/8000/9000 Series processors. A 5+2+2 phase digital VRM, DDR5 up to 7600MHz (OC), PCIe 4.0 storage, Wi-Fi 6E, and 2.5GbE deliver fast, stable computing for gaming, creation, and everyday use. Smart Fan 6 cooling, Q-Flash Plus BIOS update, and Ultra Durable design make building and upgrading simple.
Key Features
- AMD AM5 socket; Ryzen 7000 / 8000 / 9000 Series support
- 5+2+2 phase digital VRM power design
- 4× DDR5 DIMMs, up to 256GB; AMD EXPO and Intel XMP support
- Dual M.2 PCIe 4.0 x4 and 4× SATA 6Gb/s
- Wi-Fi 6E (802.11ax) and 2.5GbE LAN
- 2× DisplayPort and 1× HDMI outputs (triple display capable; CPU dependent)
- Smart Fan 6 with multiple sensors and hybrid fan headers
- Q-Flash Plus: update BIOS without CPU, RAM, or GPU
- Ultra Durable components and reinforced slots
Specifications
| Model | B650M D3HP AX (rev. 1.0) |
| Form Factor | Micro ATX (24.4 × 24.4 cm) |
| Socket / Chipset | AMD AM5 / AMD B650 |
| CPU Support | AMD Ryzen 7000 / 8000 / 9000 Series |
| Memory | 4× DDR5 DIMMs, up to 256GB; up to 7600MHz (OC); dual channel; EXPO/XMP |
| Graphics Outputs | 2× DisplayPort 1.4 (up to 3840×2160@144Hz), 1× HDMI 2.1 (up to 4096×2160@60Hz) |
| Storage | 2× M.2 PCIe 4.0 x4/x2; 4× SATA 6Gb/s; RAID 0/1/10 (NVMe & SATA) |
| Expansion Slots | 1× PCIe x16 (PCIe 4.0)*, 1× PCIe x1 (PCIe 3.0) *PCIEX16 supports GPU or NVMe SSD as noted by vendor |
| Networking | Realtek 2.5GbE LAN; Wi-Fi 6E (RTL8852CE), Bluetooth 5.3 |
| Audio | Realtek HD Audio codec; high-end capacitors; audio noise guard; 7.1-channel |
| Rear I/O | 1× PS/2, 1× USB-C (USB 3.2 Gen1), 3× USB 3.2 Gen1, 2× USB 2.0, 1× HDMI, 2× DP, 1× RJ-45, 3× audio jacks |
| Internal Headers | 24-pin ATX, 8-pin CPU, 2× M.2, 4× SATA, CPU fan, 2× system fans, 2× ARGB, 1× RGB, USB-C (Gen1), USB 3.2 Gen1, 2× USB 2.0, TPM, Q-Flash Plus button |
| BIOS | AMI UEFI; 256 Mbit; Q-Flash / Q-Flash Plus |
| OS Support | Windows 10/11 64-bit |
| Warranty | 3 Years |
| Note | Features and specifications may change without notice; images for illustration only. |
Package Including
- Gigabyte B650M D3HP AX Motherboard
- 2 × SATA Cables
- Wi-Fi Antenna
- I/O Shield
- User Manual / Driver Media
Tip: Enable EXPO/XMP in BIOS to reach rated DDR5 speeds, and update to the latest BIOS via Q-Flash Plus for best CPU and memory compatibility.
| Part Number | B650M D3HP AX |
|---|---|
| EAN / UPC | 4719331859510 |
