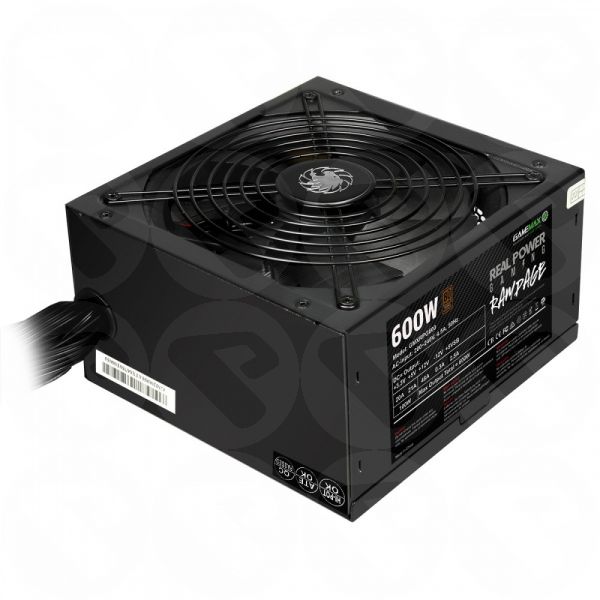

GameMax 600w RPG Rampage 80+ Bronze PSU

The GameMax Rampage 600W is a reliable ATX power supply designed for gaming systems, home PCs, and workstation builds. Certified to the 80 Plus Bronze standard, it delivers efficient power with Active PFC, a single +12V rail, and high-quality internal components, including a Japanese TK main capacitor. A quiet 140mm cooling fan and flat black cables provide excellent airflow, easy cable management, and a clean system appearance.

Key Features

• 600W Continuous Output: Delivers stable power for mainstream gaming and desktop PCs.
• 80 Plus Bronze Certified: Achieves up to 88% efficiency at typical loads.
• Active Power Factor Correction (APFC): Improves efficiency and power stability.
• Single +12V Rail: Provides reliable current delivery for modern CPUs and graphics cards.
• Japanese TK Main Capacitor: Enhances durability and long-term reliability.
• 140mm Silent Cooling Fan: Offers efficient cooling with low operating noise.
• Flat Black Cables: Simplifies cable routing while improving airflow.
• Non-Modular Design: All required cables are permanently attached for straightforward installation.

What's Included

• 1 × GameMax Rampage 600W Power Supply
• Power Cable (region dependent)
• User Manual
• Mounting Screws

Specifications

• Brand: GameMax
• Series: Rampage
• Product Type: ATX Power Supply
• Rated Power: 600W
• Certification: 80 Plus Bronze
• Efficiency: Up to 88% (Typical), 85% Rated
• PFC: Active PFC
• Input Voltage: 200–240V AC
• Input Current: 4.5A
• Input Frequency: 50Hz
• Cooling Fan: 140mm
• MTBF: 100,000 Hours
• Operating Temperature: 0°C to 40°C
• Dimensions: 150 × 87 × 160mm
• Warranty: 2 Years

Power Output

• +3.3V: 20A
• +5V: 21A
• +12V: 48A
• -12V: 0.3A
• +5VSB: 2.5A
• Total Maximum Output: 600W

Connectors

• 1 × 20+4 Pin Motherboard Connector
• 1 × 4+4 Pin CPU Power Connector
• 2 × 6+2 Pin PCIe Connectors
• 6 × SATA Power Connectors
• 2 × 4-Pin Molex Connectors

Protection Features

• Over Voltage Protection (OVP)
• Over Power Protection (OPP)
• Under Voltage Protection (UVP)

Applications

• Gaming PCs
• Home desktop systems
• Office workstations
• Entry-level content creation
• PC upgrades
• Custom PC builds

Benefits

• Reliable power for gaming and everyday computing
• Improved energy efficiency with 80 Plus Bronze certification
• Quiet cooling with a large 140mm fan
• Easy cable management using flat black cables
• Stable power delivery for modern hardware
• Built with quality components for long-term durability

Why Choose the GameMax Rampage 600W?

The GameMax Rampage 600W combines dependable performance, energy efficiency, and quality internal components at an affordable price. Whether you're building your first gaming PC or upgrading an existing system, it delivers stable power, quiet operation, and the essential connectivity needed for today's desktop hardware.
