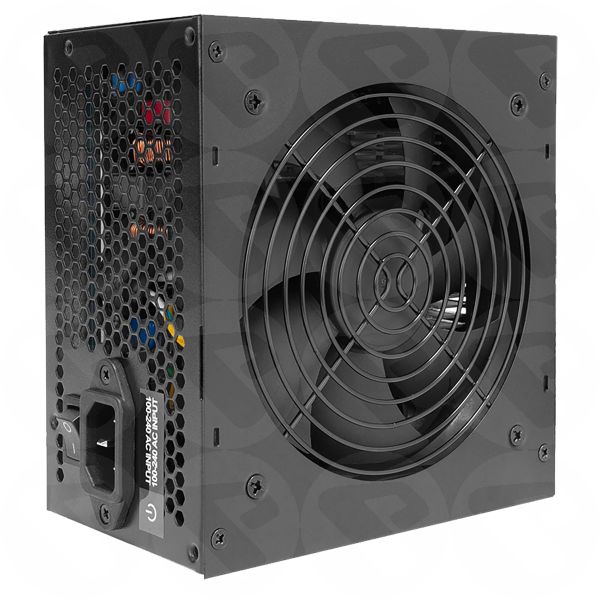

CIT 500W ATV Eco PSU, ATX 12V, Active PFC, 2 x 6+2 pin PCIe, 140mm Fan, Fully Wired, 80+ Bronze
The CiT 500W ATV E power supply is perfect for powering a home or office computer and with an 80 PLUS Bronze efficiency rating which guarantees to seamlessly deliver full wattage to your PC system. The ATV E power supply housing a 120mm black fan offers both cooling and low noise.
Offering a straightforward and reliable way to power your system, we want the ATV E to be that simple with a single +12v rail, active PFC and top tier circuit protections, this PSU is built for purpose and can handle all your main computing needs, just plug it in and get to work.
The smooth elegant all-black casing and all black cable configuration allows the PSU to fit seamlessly into your PCs theme and supported by a two-year warranty. The CiT ATV E is the power supply to deliver reliable and affordable power.
Key Features
- 80 Plus Certification - The CiT ATV E is 80 PLUS Bronze certified delivering up to 85 percent for high efficiency.
- All Black - The all-black PSU casing and cable configuration the ATV E effortlessly fits and blends into the rest of your system to add a sleek and stealth finish.
- Wired Power Supply - Flat black cables make it easy to connect everything together and easily manage and save the space inside the chassis.
- Single 12V Rail Output - Single 12V rail for high compatibility and extreme high current output.
- Active PFC - CiT have used an active PFC ensures small and light components with great flexibility and control allowing you to operate in universal input range for an excellent performance.
- Low Noise - The ATV E includes a 12cm black fan provides excellent cooling and low-noise.
- Hardware Protection - Top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OPP (Over Power Protection) & SCP (Short Circuit Protection).
PSU Specifications
| AC INPUT: 100-240 VAC 8A 50-60Hz | |||||
| DC Output Max |
+3.3V | +5V | +12V1 | -12V | +5VSB |
| 16A | 18A | 38A | 0.3A | 2.5A | |
| 500W | |||||
Connectors
 |
20+4 Pin Main Connectors: 1 |
 |
4+4 Pin 12V Connectors: 1 |
 |
SATA Connectors: 6 |
 |
4-Pin Molex Connectors: 2 |
 |
6+2 Pin PCI-e Connectors: 2 |
Detailed Specifications
| Dimensions: | 150mm x 85mm x 140mm (W x H x D) |
| Input Voltage: | 100-240 VAC |
| Input Current: | 8A |
| Input Frequency Range: | 50-60Hz |
| PFC: | Active PFC |
| Power Good Signal: | 100-500ms |
| Hold Up Time: | Greater than or equal to 10ms |
| Efficiency: | > 82% (85% max) |
| MTBF: | 100,000 Hours |
| Protection: | OVP / OLP / OPP / SCP |
| Power: | 500W |
| Operation Temperature: | 0-40°C |
| Safety: | CE / CCC / CB / UKCA / ROHS |
| Cooling: | 120mm Black Fan |
| Noise: | 38dBA |
| 80 Plus Certified: | Yes - 80 Plus Bronze |
General Specifications
| Manufacturer Part Number: | 500W ATV E |
| EAN Number: | 5055492409805 |
| Has Mains Plug: | No |
| Colour: | Black |
| What's In The Box: | Power Supply Manual Cable Ties Screws |
| Unit (Product) Dimensions (mm): | 150mm x 85mm x 140mm (W x H x D) |
| Packaging Dimensions (mm): | 240mm x 200mm x 130mm (W x H x D) |
| Net Weight (KGs): | 1.3 KGs |
| Gross Weight (KGs): | 1.39 KGs |
| Part Number | PSUCIT500ATVE |
|---|---|
| EAN / UPC | 5055492409805 |
