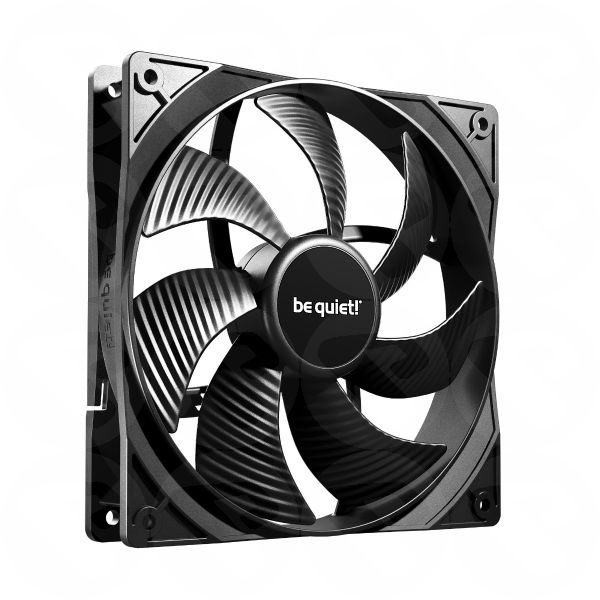

140MM FAN - BEQUIET PURE WINGS 3, RIFLE BEARING, BLACK, HIGH SPEED, PWN BL108
Pcode
30706
£14.00
In stock
PURE WINGS 3
140mm PWM
Performant, Progressive, Quiet
With low minimum rpm and high top-end speed, Pure Wings 3 140mm PWM are the perfect addition to PCs for any application. The fan offers outstanding reliability and makes for a long-lasting, companion for your gaming system.
- Optimized fan frame for outstanding performance on radiators
- Newly designed fan blades and re-arranged angle for extraordinary air pressure
- Pure Wings 3 140mm PWM can be operated with very low minimum rpm for very quiet operation
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- Product conception, design and quality control in Germany
Categories: Components, Cases, Cooling Fans & Accessories
General data
| Model | Pure Wings 3 140mm PWM |
| Dimensions (mm) | 140 |
| Color option | Black |
| Lighting | - |
| Fan speed @ 100% PWM / 12V (rpm) | 1200 |
| Noise level @ 100% PWM / 12V (dB(A)) | 21.9 |
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 0.96 |
Mechanical specifications
| Dimensions (L x W x H), (mm) | 140 x 140 x 25 |
| Weight incl. fixed cables (g) | 180 |
| Bearing technology | Rifle |
| Motor technology | 4-pole fan motor |
| Push pin fixing | - |
| Screw fixing | ✓ |
Cables / Connectors
| Daisy-chain compatible | - |
| Lighting connector | - |
| Connector | 4-pin PWM |
| Cable length (mm) | 460 |
| Cable sleeve | - |
Performance / Noise
| Air Flow @ 100% PWM / 12V (CFM / m3/h) | 57.4 / 97.5 |
| Air Pressure @ 100% PWM / 12V (mm H2O) | 0.96 |
| Noise level @ 100% PWM / 12V (dB(A)) | 21.9 |
| Lifespan (h / 25°C) | 80,000 |
Electrical specifications
| Rated Voltage DC (V) | 12 |
| Operating Voltage DC (V) | 5 - 13.2 |
| Current consumption (A) | 0.06 |
| Safety current (A) | 0.30 |
| Input power (W) | 3.6 |
| Rated Current LED (A) | - |
Accessories
| 3-pin to 4-pin 12V-connector | - |
| 12V to 7V adapter | - |
| 12V to 5V adapter | - |
| Screws | 4 |
| Push pins | - |
| hard plastic washer | - |
| Others | - |
Safety certification
| Approvals | CE / RoHS / RU / UKCA / WEEE |
| Part Number | BL108 |
|---|---|
| EAN / UPC | 4260052190807 |
