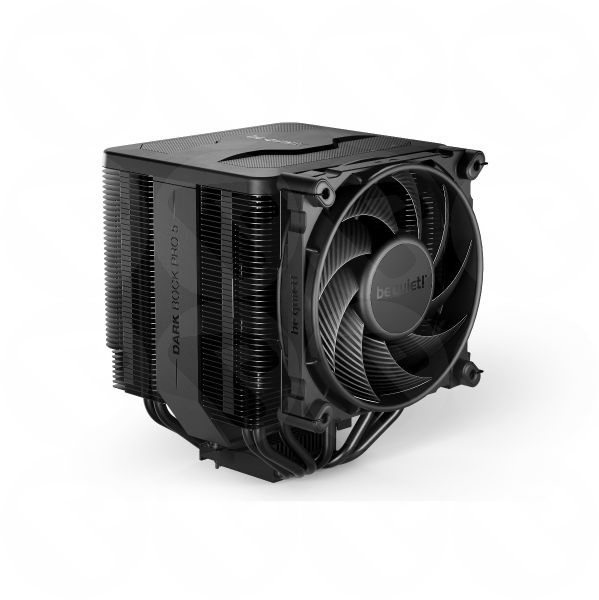

Be Quiet! BK036 Dark Rock Pro 5 Heatsink & Fan, Intel/AMD, 2 Silent Wings Fans, Speed Switch, 270W TDP
Pcode
30805
£85.00
In stock
DARK ROCK PRO 5
No Compromise Performance and Silence
Dark Rock Pro 5 offers an immense cooling performance and virtually inaudible operation. Excellent for heavily overclocked systems and demanding workstations.
- 7 high-performance heat pipes for immensely high cooling power
- 2 virtually inaudible Silent Wings PWM fans for perfect airflow
- Front fan with funnel-shaped outlet for optimal air distribution
- A speed switch allows you to switch between Quiet Mode and Performance Mode anytime
- Height-adjustable front fan and generous heat sink cut-outs for high RAM and VRM cooler compatibility
- Special black coating with ceramic particles enables perfect heat transfer and elegant look
- Compatible with liquid metal thermal grease
Categories: Components, Processors, Coolers
General data
| Model | Dark Rock Pro 5 |
| TDP (W) | 270 |
| Color option | Black |
| Overall dimensions without mounting material (L x W x H), (mm) | 145 x 136 x 168 |
| Total weight (kg) | 1.29 |
| Socket compatibility Intel | 1700 / 1200 / 1150 / 1151 / 1155 |
| Socket compatibility AMD | AM5 / AM4 |
| Overall noise level (dB(A)) @ 50/75/100% (rpm) | 8.9 / 16.3 / 23.3 |
| Number of fans | 2 |
| Lighting connector | - |
Infographics
Heatsink specifications
| Dimensions (L x W x H), (mm) | 119.5 x 136 x 168 |
| Fin material | Aluminum |
| Surface treatment | Ceramic coating |
| Base material | Copper |
| CPU contact surface | CNC machined |
| Heatpipe number / Diameter (mm) | 7 / 6 |
| Decoupled fan mounting | - |
Fan specifications
| Fan model | Silent Wings 4 / Silent Wings |
| Fan dimensions (mm) | 120 x 120 x 25 / 135 x 135 x 25 |
| Speed @ 100% PWM (rpm) | Q: 1500; 1300 / P: 2000; 1700 |
| Airflow at 100% PWM / 12V (CFM / m3/h) | 52.5 / 89.1 | 68.7 / 116.6 |
| Air Pressure at 100% PWM / 12V (mm H2O) | 2.48 / 1.82 |
| Bearing technology | Fluid Dynamic Bearing |
| Motor technology | 6-pole fan motor |
| Rated Voltage (V) | 12 |
| Input current (A) | 0.20 / 0.28 |
| Input power (W) | 2.4 / 3.4 |
| Connector | 4-pin PWM |
| Lighting connector | - |
| Cable length (mm) | 80 / 120 |
| Lifespan (h / 25°C) | 300,000 |
| Y-Cable | ✓ |
Accessories
| Thermal grease (Type) | Included |
| Mounting set | Intel & AMD |
| Screwdriver | ✓ |
| Y-Cable | - |
| User manual languages | CN, DE, EN, ES, FR, JP, PL, RU, TW |
Safety certification
| Approvals | CE, UKCA, UL, TÜV |
Environmental directives
| RoHS | ✓ |
| WEEE | ✓ |
| Triman | ✓ |
| Part Number | BK036 |
|---|---|
| EAN / UPC | 4260052190746 |
