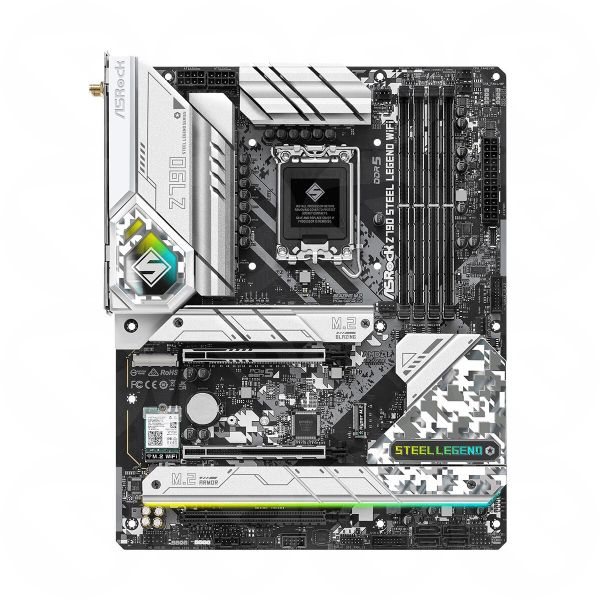

Asrock Z790 STEEL LEGEND WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 5x M.2

Elevate your PC build with the Asrock Z790 Steel Legend WiFi ATX Motherboard, engineered for high-performance computing. Featuring the Intel Z790 chipset and LGA 1700 socket, this motherboard supports Intel Core i9, i7, and i5 processors. It boasts dual-channel DDR5 memory support up to 128GB, ensuring rapid data access and multitasking capabilities. Equipped with WiFi 6E and 2.5Gb Ethernet, it offers ultra-fast connectivity for gaming and content creation. The board also includes multiple M.2 and SATA III connectors, Thunderbolt headers, and RGB LED pin headers, providing extensive expansion options. Its durable ATX form factor and Realtek ALC897 audio chip deliver a reliable and immersive computing experience.

Key Features

• Chipset: Intel Z790
• Socket: LGA 1700
• Memory Support: Dual-channel DDR5, up to 128GB
• Connectivity: WiFi 6E, 2.5Gb Ethernet LAN
• Expansion Slots: PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16
• Storage Interfaces: 1 × M.2, 8 × SATA III
• USB Ports: 1 × USB 3.2 Gen 2 Type-C, 8 × USB 3.2 Gen 1 Type-A
• Audio: Realtek ALC897 7.1 channels
• RGB Support: RGB LED pin header
• Form Factor: ATX (305mm x 244mm)
• BIOS: UEFI AMI
• Warranty: Includes receipt; invoice available upon request

Specifications

• Model: Asrock Z790 Steel Legend WiFi
• Form Factor: ATX (305mm x 244mm)
• Chipset: Intel Z790
• Socket: LGA 1700
• Memory Slots: 4 × DIMM
• Max Memory Capacity: 128GB
• Memory Types Supported: DDR5-SDRAM
• Ethernet LAN: 1 × 2.5Gb Ethernet (Dragon RTL8125BG)
• WiFi: WiFi 6E (802.11ax)
• USB Ports: 1 × USB 3.2 Gen 2 Type-C, 8 × USB 3.2 Gen 1 Type-A
• Audio: Realtek ALC897 7.1 channels
• Expansion Slots: 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16
• Storage Interfaces: 1 × M.2, 8 × SATA III
• Thunderbolt Header: 1
• RGB LED Header: Yes
• BIOS: UEFI AMI
• Warranty: Includes receipt; invoice available upon request
