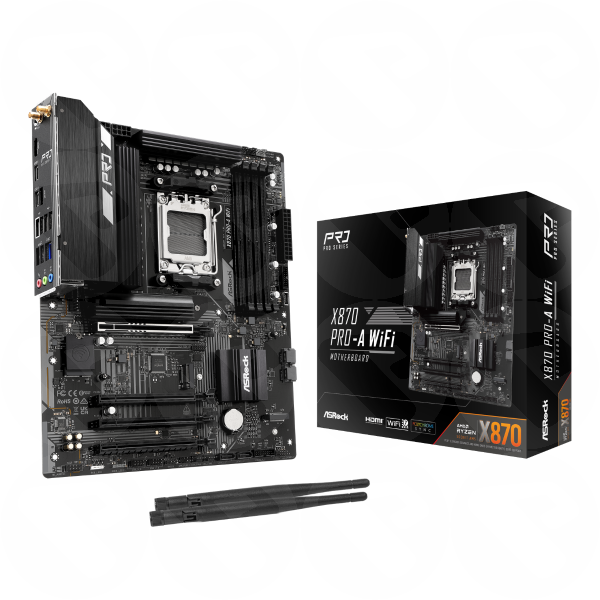

Asrock X870 Pro-A WIFI (Socket AM5) DDR5 ATX Motherboard

The ASRock X870 Pro-A WiFi is a feature-rich ATX motherboard designed for AMD Socket AM5 processors. Built around the AMD X870 platform, it supports compatible Ryzen processors and high-speed DDR5 memory, making it a strong foundation for modern gaming, productivity and high-performance PC builds.

The motherboard provides four DDR5 DIMM slots with support for up to 256GB of memory and speeds of up to 8000+ MT/s through overclocking. AMD EXPO and Intel XMP memory profiles are supported for convenient memory performance optimisation.

Key Features

• AMD X870 chipset with Socket AM5
• Supports compatible AMD Ryzen 9000, 8000 and 7000 Series processors
• 4 × DDR5 DIMM slots
• Supports up to 256GB DDR5 memory
• DDR5 speeds up to 8000+ MT/s (OC)
• AMD EXPO and Intel XMP support
• PCIe 5.0 x16 primary expansion slot
• Three M.2 storage slots including PCIe Gen5 x4 support
• 4 × SATA3 6Gb/s connectors
• Wi-Fi 7 wireless connectivity
• Bluetooth 5.4
• 2.5 Gigabit Dragon LAN
• 2 × USB4 Type-C rear ports with up to 40Gb/s bandwidth
• HDMI 2.1 output with support up to 4K@120Hz
• 7.1-channel HD audio with Realtek ALC897 codec
• Nahimic Audio support
• BIOS Flashback functionality
• RGB and addressable LED headers
• ATX form factor

Specifications

• Chipset: AMD X870
• CPU Socket: AMD Socket AM5
• CPU Support: AMD Ryzen 9000 / 8000 / 7000 Series processors
• Memory Technology: Dual-channel DDR5
• Memory Slots: 4 × DDR5 DIMM
• Maximum Memory Capacity: 256GB
• Memory Support: DDR5 ECC/non-ECC, unbuffered
• Maximum Memory Speed: DDR5 8000+ (OC)
• Memory Profiles: AMD EXPO / Intel XMP
• Primary Expansion Slot: 1 × PCIe 5.0 x16
• Additional Expansion: 1 × PCIe 4.0 x16 (x4 mode), 2 × PCIe 4.0 x16 (x1 mode)
• Wi-Fi: Wi-Fi 7 (802.11be 2x2)
• Wireless Bands: 2.4GHz / 5GHz / 6GHz
• Bluetooth: 5.4
• LAN: 2.5 Gigabit LAN, Dragon RTL8125BG
• Audio: 7.1-channel HD Audio
• Audio Codec: Realtek ALC897
• Audio Enhancement: Nahimic Audio
• M.2 Storage: 3 × M.2
• M.2_1: PCIe Gen5 x4, 128Gb/s
• M.2_2: SATA3 6Gb/s / PCIe Gen3 x2
• M.2_3: PCIe Gen4 x4, 64Gb/s
• SATA: 4 × SATA3 6Gb/s
• RAID: RAID 0/1/10 for SATA and NVMe M.2
• Rear USB: 2 × USB4 Type-C, 2 × USB 3.2 Gen2 Type-A, 1 × USB 3.2 Gen1 Type-A, 4 × USB 2.0
• Video Output: 1 × HDMI 2.1, up to 4K@120Hz
• USB4 Display Support: Up to 8K@30Hz
• BIOS: 256Mb AMI UEFI BIOS
• BIOS Recovery: BIOS Flashback
• Operating System Support: Windows 10/11 64-bit
• Form Factor: ATX
• Included Accessories: 2 × SATA data cables, 2 × Wi-Fi antennas

Fast Connectivity and Storage

The ASRock X870 Pro-A WiFi provides a broad selection of modern connectivity options, including Wi-Fi 7, Bluetooth 5.4, 2.5 Gigabit LAN and USB4 Type-C connectivity. Storage options include a PCIe Gen5 x4 M.2 slot, an additional PCIe Gen4 x4 M.2 slot, a flexible SATA/PCIe M.2 slot and four SATA3 connectors.

Built for Modern AM5 Systems

With DDR5 memory support, PCIe 5.0 expansion, fast M.2 storage connectivity, Wi-Fi 7 and USB4, the ASRock X870 Pro-A WiFi provides a versatile platform for building a modern AMD-based desktop PC.
