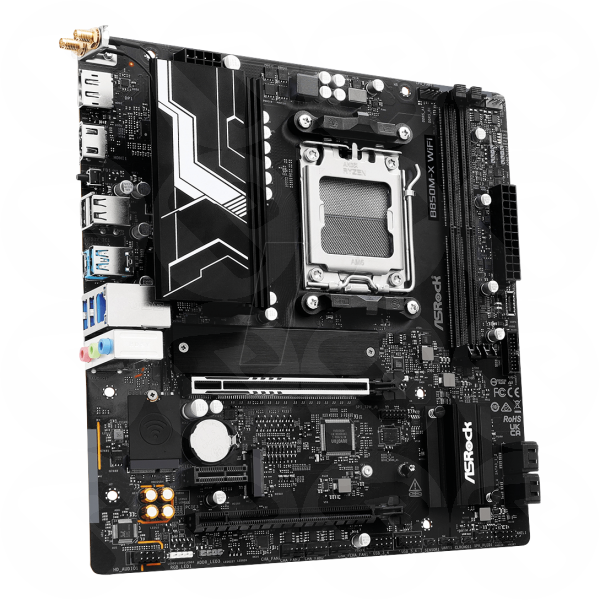

Asrock B850M-X WiFi R2.0 (Socket AM5) DDR5 mATX Motherboard

The ASRock B850M-X WiFi R2.0 is a compact Micro ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors. Built on the AMD B850 chipset, it combines reliable performance with modern connectivity, featuring DDR5 memory support, PCIe 5.0 expansion, dual M.2 storage, integrated Wi-Fi 6E, Bluetooth 5.2, and 2.5 Gigabit Ethernet. It is an excellent foundation for gaming, productivity, and everyday desktop builds.

Key Features

• AMD AM5 Socket: Supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors.
• AMD B850 Chipset: Modern platform with excellent performance and upgrade potential.
• DDR5 Memory Support: Two DIMM slots supporting up to 128GB and DDR5-8200+ (OC).
• PCIe 5.0 Graphics Slot: High-speed PCIe 5.0 x16 slot for next-generation graphics cards.
• Dual M.2 Storage: One PCIe Gen5 x4 Blazing M.2 slot and one PCIe Gen4 x4 Hyper M.2 slot.
• Integrated Wi-Fi 6E: Fast wireless networking with Bluetooth 5.2 support.
• 2.5 Gigabit Ethernet: High-speed wired networking powered by Realtek.
• BIOS Flashback: Easily update the BIOS without installing a processor.

What's Included

• 1 × ASRock B850M-X WiFi R2.0 Motherboard
• User Manual
• Wi-Fi Antennas
• SATA Cable(s)
• I/O Accessories

Specifications

• Brand: ASRock
• Model: B850M-X WiFi R2.0
• Chipset: AMD B850
• CPU Socket: AM5
• Form Factor: Micro ATX
• Dimensions: 244 × 226mm
• Power Design: 6+1+1 Phase Dr.MOS

Memory Support

• 2 × DDR5 DIMM Slots
• Maximum Memory: 128GB
• Dual-Channel Architecture
• Supports DDR5-8200+ (Overclocked)
• ECC Memory Support (Processor Dependent)

Expansion Slots

• 1 × PCIe 5.0 x16 Slot
• 1 × PCIe 4.0 x16 Slot (x4 Mode)
• 1 × PCIe 4.0 x1 Slot

Storage

• 1 × Blazing M.2 PCIe Gen5 x4 Slot
• 1 × Hyper M.2 PCIe Gen4 x4 Slot
• 1 × M.2 Key-E Slot for Wi-Fi Module
• 4 × SATA III 6Gb/s Ports
• RAID 0, RAID 1 and RAID 10 Support

Networking

• Realtek 2.5 Gigabit Ethernet
• Wi-Fi 6E (802.11ax)
• Bluetooth 5.2

Audio

• Realtek ALC897 7.1-Channel HD Audio
• Nahimic Audio Support

Rear I/O Ports

• 1 × HDMI
• 1 × DisplayPort
• 1 × USB 3.2 Gen1 Type-C
• 3 × USB 3.2 Gen1 Type-A
• 2 × USB 2.0
• 1 × 2.5Gb Ethernet Port
• 3 × Audio Jacks

Internal Connectors

• 1 × 24-Pin ATX Power
• 1 × 8-Pin EPS CPU Power
• 2 × USB 3.2 Gen1 Headers
• 1 × USB 3.2 Gen1 Type-C Front Header
• 4 × USB 2.0 Ports (via headers)
• 2 × CPU Fan Headers
• 1 × Pump Header
• 3 × Chassis Fan Headers
• 1 × RGB Header
• 3 × Addressable RGB Headers
• TPM, Speaker and Thermal Headers

Applications

• Gaming PCs
• Content creation systems
• Home and office desktops
• Streaming setups
• Productivity workstations
• Compact Micro ATX builds

Benefits

• Supports the latest AMD Ryzen desktop processors
• Future-ready DDR5 and PCIe 5.0 platform
• Fast wired and wireless networking
• High-speed Gen5 NVMe SSD support
• Compact Micro ATX design for versatile builds
• Reliable power delivery with Dr.MOS components

Why Choose the ASRock B850M-X WiFi R2.0?

The ASRock B850M-X WiFi R2.0 combines modern AMD AM5 platform support with high-speed DDR5 memory, PCIe 5.0 expansion, Wi-Fi 6E, 2.5Gb Ethernet, and flexible storage options. Its compact Micro ATX design and premium connectivity make it an ideal choice for gamers, professionals, and enthusiasts building a powerful yet space-efficient desktop PC.
