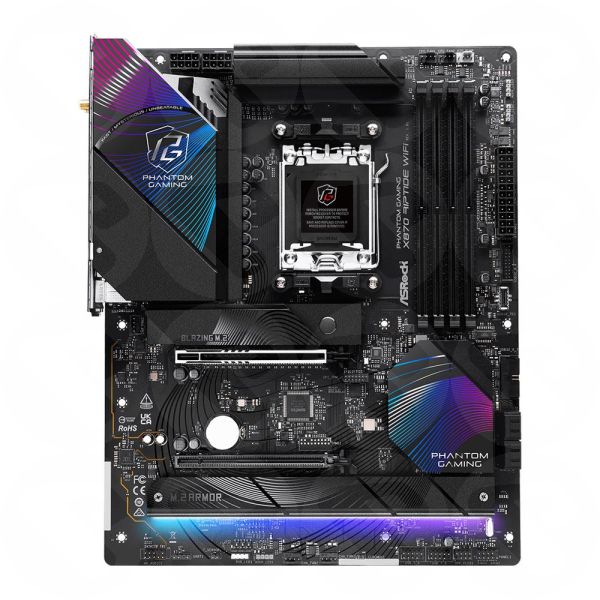

ASRock AMD X870 Riptide WiFi AM5 DDR5 PCIe 5.0 ATX Motherboard

ASRock X870 Riptide WiFi AMD AM5 DDR5 PCIe 5.0 ATX Motherboard

The ASRock X870 Riptide WiFi is an ATX motherboard designed for PC enthusiasts, gamers and professionals building a modern AMD desktop system. Powered by the AMD X870 chipset and built for compatible AMD Ryzen processors using the AM5 socket, it combines DDR5 memory support, PCIe 5.0 expansion, high-speed M.2 storage and advanced networking in one versatile platform.

With Wi-Fi 7, Bluetooth 5.4, 2.5Gbps Ethernet, USB4 Type-C connectivity and Realtek 7.1-channel audio, the X870 Riptide WiFi provides a comprehensive foundation for gaming, content creation, productivity and demanding everyday computing.

AMD X870 Platform and AM5 Processor Support

Built around the AMD X870 chipset, the ASRock X870 Riptide WiFi uses the AM5 processor socket and supports compatible AMD Ryzen processors. Its modern desktop platform provides flexibility for performance-focused PC configurations, including gaming systems and professional workstations.

Before purchasing, check the official ASRock CPU support list and BIOS requirements to confirm compatibility with your chosen processor.

Four DDR5 Memory Slots

The motherboard features four 288-pin DDR5 DIMM slots and supports dual-channel memory configurations. With a stated maximum capacity of 256GB and memory overclocking speeds of 8000MHz and above, it offers flexibility for systems requiring substantial memory capacity and high bandwidth.

Actual memory speeds and supported configurations depend on the processor, installed memory modules, BIOS settings and system configuration. Consult the official memory support list when selecting compatible RAM.

PCIe 5.0 and PCIe 4.0 Expansion

The ASRock X870 Riptide WiFi provides one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot, according to the supplied specifications. These expansion interfaces support compatible graphics cards and other PCIe devices.

The PCIe 5.0 slot offers a next-generation interface for compatible graphics hardware, making the motherboard a suitable foundation for a modern gaming or productivity PC. Check graphics card dimensions, power requirements and case clearance before installation.

Flexible M.2 and SATA Storage

With three M.2 Socket 3 M-key slots, the motherboard supports compatible M.2 storage devices in 2230, 2260 and 2280 formats, as listed in the supplied specifications. These connections provide options for installing compatible SSDs for your operating system, applications, games and working files.

Four SATA 6Gb/s connectors provide additional connectivity for compatible SATA SSDs and hard disk drives. RAID 0, RAID 1 and RAID 10 support offers further storage configuration options for compatible drives.

Wi-Fi 7, Bluetooth 5.4 and 2.5Gbps Ethernet

The X870 Riptide WiFi includes Wi-Fi 7 (802.11be) wireless networking and Bluetooth 5.4 support for compatible devices. This combination offers modern connectivity for wireless peripherals and supported networks.

For wired networking, the Killer E3100G LAN chipset supports speeds of up to 2.5Gbps through the RJ-45 Ethernet port. This is useful for compatible network environments where fast file transfers, online gaming and responsive network access are priorities.

Wireless and wired performance depends on the connected equipment, network conditions and service available. A compatible router and suitable network infrastructure are required to achieve the highest supported speeds.

USB4 Type-C Connectivity

Two rear USB4 Type-C ports provide connectivity for compatible high-speed peripherals and external storage devices, with supported transfer speeds of up to 40Gbps. The motherboard also includes rear USB Type-A connections for a variety of accessories and peripherals.

An internal USB 3.2 Gen 2x2 Type-C header supports a compatible front-panel Type-C port, while internal USB headers provide connections for supported case ports and additional devices.

Realtek ALC4082 7.1-Channel Audio

The Realtek ALC4082 audio chipset provides 7.1-channel audio support for compatible audio configurations. Dedicated line-out and microphone connections accommodate compatible analogue audio equipment, while the optical digital audio output supports suitable digital audio devices.

This range of audio connections makes the motherboard suitable for desktop systems used for gaming, entertainment, communication and general productivity.

Cooling and RGB Expansion

The motherboard includes dedicated CPU fan, system fan and water pump headers for connecting compatible cooling components. These connections provide flexibility when configuring airflow and cooling for a desktop PC.

Three RGB LED connectors allow compatible lighting components to be integrated into your build, helping you coordinate the appearance of your system with supported RGB accessories.

ATX Design for Custom PC Builds

Measuring 305 × 244mm, the ASRock X870 Riptide WiFi uses the standard ATX form factor. It is designed for compatible ATX desktop cases and provides a practical layout for installing a processor, memory, graphics card, storage drives and other components.

Its combination of DDR5 support, modern expansion interfaces, high-speed networking and extensive connectivity makes it a versatile option for builders planning a gaming PC or workstation.

Product Specifications

• Brand: ASRock
• Model: X870 Riptide WiFi
• Chipset: AMD X870
• Processor Socket: AM5
• Form Factor: ATX
• Dimensions: 305 × 244mm
• BIOS: 256Mb Flash ROM, UEFI AMI BIOS
• Memory Type: DDR5 SDRAM
• Memory Slots: 4 × 288-pin DIMM
• Maximum Memory Capacity: 256GB
• Memory Channels: Dual-channel
• Memory Speed: 8000MHz and above with supported overclocking configurations
• Expansion Slots: 1 × PCIe 5.0 x16 and 1 × PCIe 4.0 x16
• M.2 Storage: 3 × M.2 Socket 3, M-key
• M.2 Form Factors: 2230, 2260 and 2280
• SATA Storage: 4 × SATA 6Gb/s
• RAID Support: RAID 0, RAID 1 and RAID 10
• Wireless Networking: Wi-Fi 7 (802.11be)
• Bluetooth: 5.4
• LAN Controller: Killer E3100G
• Ethernet Speed: Up to 2.5Gbps
• Rear USB4: 2 × Type-C, up to 40Gbps
• Rear USB Type-A: 4 × USB 2.0, 3 × USB 3.2 Gen 1 and 2 × USB 3.2 Gen 2
• Video Output: 1 × HDMI 2.1
• Audio: Realtek ALC4082, 7.1-channel
• Audio Connections: Line-out, microphone-in and optical digital audio
• Internal Connectivity: USB headers, CPU fan headers, system fan headers and water pump header
• RGB Support: 3 × RGB LED connectors
• Power Connectors: 1 × 24-pin ATX and 2 × 8-pin +12V
• Operating Systems: Windows 10 64-bit and Windows 11 64-bit
• Warranty: 3 years parts and 3 years labour, as specified

What's in the Box

• ASRock X870 Riptide WiFi motherboard
• 2 × SATA data cables
• ASRock Wi-Fi 2.4/5/6GHz antenna
• ARGB splitter cable
• Thermistor cable

Build a Modern AMD Desktop

The ASRock X870 Riptide WiFi combines an AMD X870 chipset, AM5 processor support, DDR5 memory, PCIe 5.0 expansion, three M.2 storage slots, Wi-Fi 7 and 2.5Gbps Ethernet in an ATX motherboard design. With USB4 Type-C connectivity, flexible storage options and 7.1-channel audio, it provides a capable foundation for a modern gaming PC or high-performance workstation.

Compatibility note: Confirm processor and BIOS compatibility, memory support, M.2 drive compatibility, case dimensions and expansion card requirements using the official ASRock documentation before purchasing.
