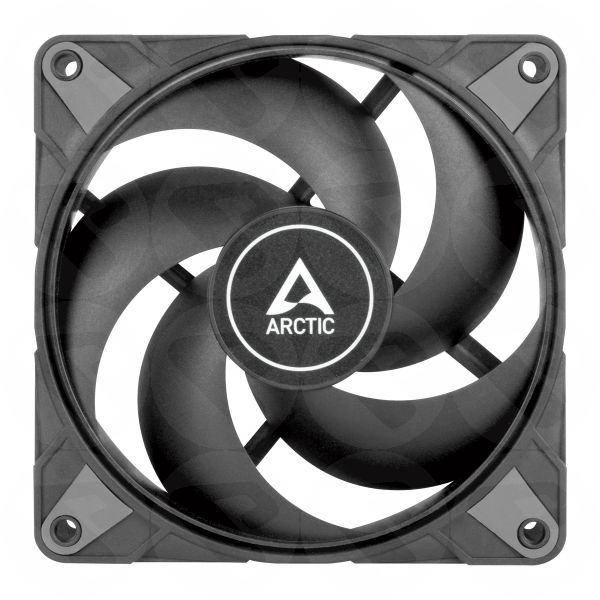

Arctic P12 Max High-Speed 12cm PWM Case Fan, Fluid Dynamic Bearing, 400-3300 RPM, Black
Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P12 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed.
Extremely Wide Speed Range
The P12 Max features the controllable speed of an impressively wide range from 400 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.
Maximum Performance - Without Compromises
The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.
0dB Mode - Zero RPM
The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.
Dimensions:
120 (L) x 120 (W) x 25 (H) mm
Net Weight:
184 g
Operating Ambient Temperature:
0–40 °C
Fan Specifications
Fan Speed:
400–3300 rpm (PWM controlled), 0 rpm below 2 % PWM
Airflow:
81.04cfm | 137.69m³/h
Static Pressure:
4.35 mmH2O
Noise Level:
0.6 Sone
Fan Bearing:
Fluid Dynamic Bearing
Typical Voltage:
12 V DC
Start Up Voltage:
3.9V DC
Current:
0.29 A
Cable Length:
400 mm
Connector:
4-Pin PWM Connector
| Part Number | ACFAN00280A |
|---|---|
| EAN / UPC | 4895213704076 |
