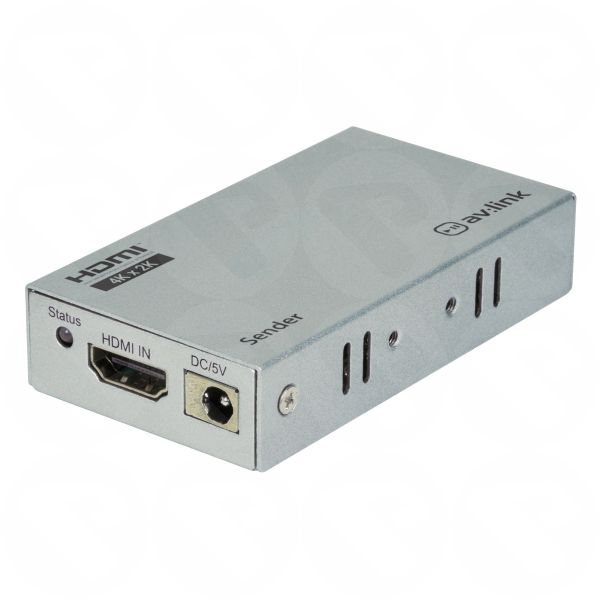

4K HDMI Extender Over Ethernet Kit (100m)

The 4K HDMI Extender Over Ethernet Kit provides a practical solution for extending HDMI video and audio signals over longer distances. Using a single shielded Cat5e or Cat6 network cable, it can transmit compatible 4K and Full HD HDMI signals over distances of up to 100 metres.

Designed for both professional and home AV environments, the extender supports HDMI 1.4 and HDCP 2.2, with 4K video transmission up to 30Hz. Built-in IR passthrough allows compatible source equipment to be controlled remotely from the display location, while the integrated audio extraction function provides a convenient way to connect external audio equipment through a 3.5mm output.

Key Features

• Extends HDMI signals up to 100 metres
• Uses a single Cat5e or Cat6 network cable
• Supports 4K@30Hz and Full HD video
• HDMI 1.4 compliant
• HDCP 2.2 compliant
• Built-in IR passthrough for remote source control
• 3.5mm audio extraction output
• Supports multiple high-quality audio formats
• Gold-plated HDMI connectors
• Plug-and-play installation
• Supports shielded Cat5e/6 STP or FTP cables
• Rack-mountable design with fixing brackets included

Specifications

• Product Type: HDMI Extender over Ethernet
• Maximum Transmission Distance: 100m
• Video Resolution: Up to 4K@30Hz
• Video Support: 4K and Full HD
• HDMI Standard: HDMI 1.4
• HDCP: HDCP 2.2
• Network Cable Required: Cat5e/6 STP/FTP
• Network Cable: Not supplied
• IR Passthrough: Yes
• Audio Extraction: Yes
• Audio Output: 3.5mm
• Supported Audio: DTS-HD, Dolby TrueHD, DTS, Dolby AC-3 and DSD
• HDMI Connectors: Gold-plated
• Installation: Plug and Play
• Mounting: Rack-mountable with fixing brackets
• Dimensions per Unit: 18 × 45 × 82mm
• Weight per Unit: 120g

Long-Distance HDMI Transmission

This extender kit allows compatible HDMI signals to be transported over up to 100 metres using a single shielded Cat5e or Cat6 cable. This makes it useful for installations where a conventional HDMI cable would be impractical or too short.

IR Control and Audio Extraction

Built-in IR passthrough enables convenient remote control of compatible source devices from the display location. The audio extraction function also allows external speakers, amplifiers or other audio equipment to be connected through the 3.5mm output.

Versatile Applications

The 4K HDMI Extender is suitable for a wide range of installations, including home entertainment systems, business presentations, classrooms, digital signage and other professional AV applications requiring reliable long-distance HDMI connectivity.
