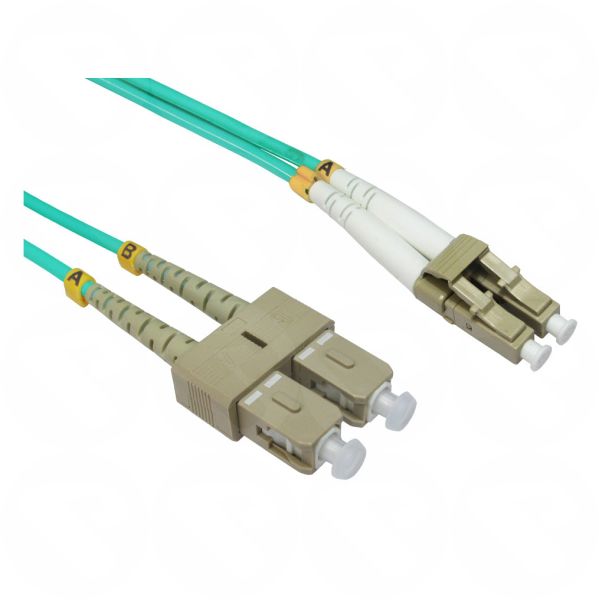

3m OM4 Fibre Optic Cable LC-LC (Multi-Mode)

Achieve high-throughput, low-latency connectivity with this 3 m OM4 multimode fibre patch cable. Featuring duplex LC and SC connectors, it’s designed for seamless integration across diverse networking equipment. The laser-optimized OM4 core ensures superior bandwidth and performance, making it ideal for 10G, 40G, or 100G environments. Its durable jacket and precision connectors deliver reliable performance, even in demanding data centre or enterprise installations.

Key Features

• Duplex LC (on one end) to SC (on the other) connector configuration
• OM4 multimode fibre (50/125 µm) optimized for high-speed links
• Suitable for 10G up to 550 m, and 40/100G up to ~150 m in optimal conditions
• Low insertion loss, high return loss for stable data transmission
• Jacket rated for indoor use (riser / OFNR or similar)
• Compatible with both LED and VCSEL light sources
• Backward compatible with OM3 deployments

Specifications

• Cable length: 300 cm
• Fibre type: OM4 multimode (50/125 µm)
• Connector A: LC duplex (UPC polish)
• Connector B: SC duplex (UPC polish)
• Jacket rating: indoor riser / OFNR (or equivalent)
• Outer diameter: ~ 2.0 mm (zip-cord style)
• Insertion loss (typical): ≤ 0.3 dB per connector
• Return loss: ≥ 30–35 dB
• Effective Modal Bandwidth: ~ 4700 MHz·km @ 850 nm
• Operating temperature: –20 °C to +70 °C (typical)
• Color: aqua (industry standard for OM4)
