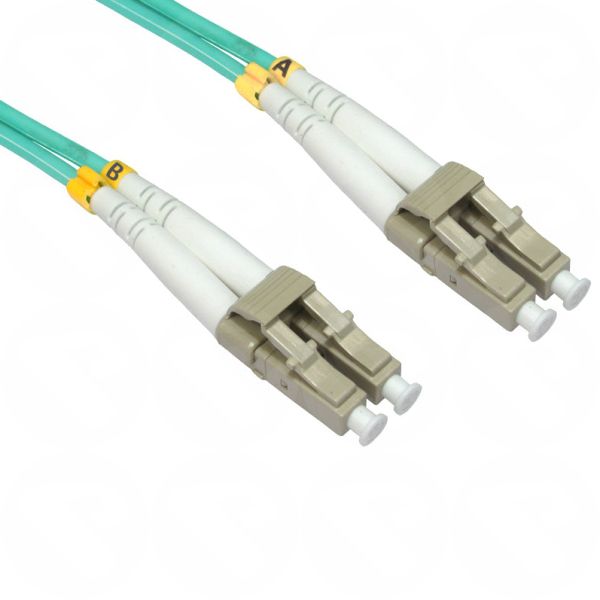

2m OM4 Fibre Optic Cable LC-LC (Multi-Mode)

Elevate your network with this high-performance 2 m OM4 LC-to-LC multimode fibre patch cable. Engineered for demanding data environments, it delivers exceptional bandwidth, low signal loss, and reliable connections for 10G, 40G, or even 100G applications. The duplex LC connectors provide compact, secure terminations, while the robust cable design ensures flexibility and durability in rack installations and data centres. Whether bridging network switches, server interfaces, or fibre panels, this cable gives you the headroom and quality demanded by modern infrastructures.

Key Features

• Duplex LC to LC connectors for compact, reliable terminations
• OM4 multimode fibre (50/125 µm) optimized for high-speed data transmission
• Low insertion loss and high return loss for performance integrity
• Bend-insensitive fibre construction for improved routing in tight spaces
• Riser/OFNR or LSZH (depending on jacket variant) for safe vertical installations
• Suitable for 10G, 40G, or 100G Ethernet applications over typical distances

Specifications

• Cable length: 200 cm
• Fibre type: OM4 multimode (50/125 µm)
• Connector A: LC duplex (UPC)
• Connector B: LC duplex (UPC)
• Jacket type: (specify: PVC / LSZH / OFNR as known)
• Cable outer diameter: ~2.0 mm
• Insertion loss (typical): ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Minimum bend radius (fibre core): ~7.5 mm
• Minimum bend radius (cable): 20 × cable diameter (static) / 10 × (dynamic)
• Operating temperature range: –10 °C to 70 °C
