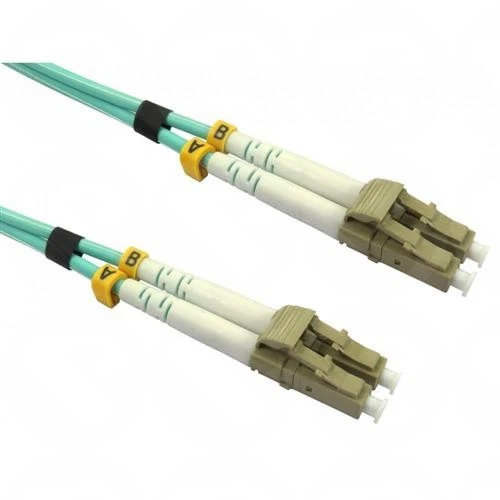

20m OM4 Fibre Optic Cable LC-LC (Multi-Mode)

Connect your high-speed network devices with confidence using this 10 m OM4 multimode fibre patch cable featuring duplex LC connectors. Designed for modern data centre, enterprise, or telecom use, it delivers high bandwidth, low signal loss, and robust performance in demanding environments. The cable’s precise termination, durable jacket, and standard compliance ensure reliable operation across 10G, 40G, or 100G links. Ideal for linking switches, modules, patch panels, and transceivers without compromising signal integrity.

Key Features

• Duplex LC (male) to LC (male) connector configuration
• OM4 multimode fibre (50/125 µm) optimized for high-speed links
• Low insertion loss and high return loss for stable signal transmission
• Compact 10 m length for longer interconnects
• Typically rated for indoor installations (riser, plenum, or LSZH versions)
• Backward compatible with OM3 multimode fibre
• Suitable for 10G, 40G, 100G Ethernet and fibre channel applications

Specifications

• Cable length: 1000 cm
• Fibre type: OM4 multimode (50/125 µm)
• Connector A: LC duplex (UPC polish)
• Connector B: LC duplex (UPC polish)
• Jacket type: (e.g. riser / OFNR, or LSZH, depending on variant)
• Outer diameter (cable): ~ 2.0 mm
• Insertion loss (typical): ≤ 0.3 dB per connector
• Return loss: ≥ 30 dB
• Minimum bend radius (fibre core): ~ 7.5 mm
• Minimum bend radius (cable assembly): 20 × cable diameter (static) / 10 × (dynamic)
• Operating temperature range: –20 °C to +70 °C
• Colour (jacket): typically aqua (standard for OM4)
